bizhub C226
by | posted in: Office Color, Office Printing | 0

Specifications



System Overview

System memory 1 GB (standard) , 3GB (Maxium)
Interface 10-BASE-T/100-BASE-TX/1,000-BASE-T Ethernet, USB 2.0, Wi-Fi 802.11a/b/g/n/ac (optional)
Network protocols TCP/IP (IPv4/IPv6), NetBEUI, SMB, LPD, IPP, SNMP, HTTP
Frame types Ethernet 802.2, Ethernet 802.3, Ethernet II, Ethernet SNAP
Automatic document feeder DF-630 (optional) Up to 70 originals, A5–A3, 35–128 gsm
Printable paper size A5-A3, customised paper sizes (width: 90 – 270 mm, length:139.7 mm – 431.8 mm), banner paper max. 1,200 × 297 mm
Printable paper weight 60-256 gsm
 Paper input capacity Standard: 1,150 sheets
Max.: 3,600 sheetss
Tray 1 500 sheets, B5–B4, 60–256 gsm
 Tray 2 500 sheets, B5–A3, 60–256 gsm
 Tray 3 PC-114 (optional) 1 × 500 sheets, B5-A3, 60-256 gsm
 Tray 4 PC-214 (optional) 2 × 500 sheets, B5-A3, 60-256 gsm
Paper feed cabinet PC-414 (optional) 2,500 sheets, A4, 60-256 gsm
Bypass tray 100 sheets, A5–A3, custom sizes (width: 90-270mm, length:139.7 mm – 1,200 mm), banner 210 x 1,200 mm,127–210 gsm
 Automatic duplexing A5-A3, 50-128 gsm
 Finishing modes (optional) Group, sort, booklet
 Power consumption [220-240 V, 50/60 Hz] less than 1.58 kW (system)
System dimensions [W × D × H]  571 × 660 × 785.5 mm (excl. ADF and lower paper tray unit)
22.5 × 26.0 × 30.9 inch (excl. ADF and lower paper tray unit)
System weight*1 Approx. 71 kg (156.5 lb)



*1 Incl. Drum/Toner bottle



Copier Specifications

Copying process                                           Electrostatic laser copy, tandem, intermediate
 Toner system                                           Simitri® HD Polymerized Toner
 Copy/print speed A4                                           Up to 22 ppm
 Copy/print speed A3                                           Up to 14 ppm
 1st copy out time                                           8.4 sec.
 Warm-up time *2                                           Approx. 20 sec.
 Copy resolution                                           600 × 600 dpi
 Gradation                                           256 gradations
 Multicopy                                           1-9,999
 Original format                                           A5-A3
 Magnification                                           25-400% in 0.1% steps, auto-zooming



*2 Warm-up time may vary depending on the operating environment and usage.

Printer Specifications

Print resolution                              1,800 (equivalent) × 600 dpi
Page Description Language                               PCL 6 (XL Version 3.0) Emulation, PCL 5e/c,                                                                                                                                                                                                                    PostScript 3 (3016) Emulation, XPS
Operating systems                               Windows Vista (32/64), Windows 7 (32/64),Windows 8.1 (32/64),                                                                                                                                                                  Windows 10 (32/64),Windows Server 2008 (32/64), Windows Server 2008 R2,                                                                                                                                    Windows Server 2012, Windows Server 2012 R2, Macintosh OS X 10.6 or later, Linux
Printer fonts                               80 PCL, 137 PostScript 3 Emulation
Mobile printing                               AirPrint (iOS), Mopria (Android), Google Cloud Print (optional),                                                                                                                                                                        Wi-Fi Direct (optional), Konica Minolta Print Service (Android),                                                                                                                                                                        PageScope Mobile (iOS, Android, Windows 10 Mobile)

Scanner Spesification

Scan speed                                                         Up to 30 ipm
Resolution                                                         Max.: 600 × 600 dpi
Scan modes                                                         Scan to Email, Scan to PC (SMB), Scan to FTP, Scan to BOX (HDD), Scan to WebDAV,                                                                                                                        Scan to WSD (Web Service), Scan to DPWS (Device Profile for Web Service), Network TWAIN scan
File formats                                                         JPEG, TIFF, PDF, compact PDF, XPS, compact XPS, PPTX
Destinations                                                         1,300 (single + group), LDAP support

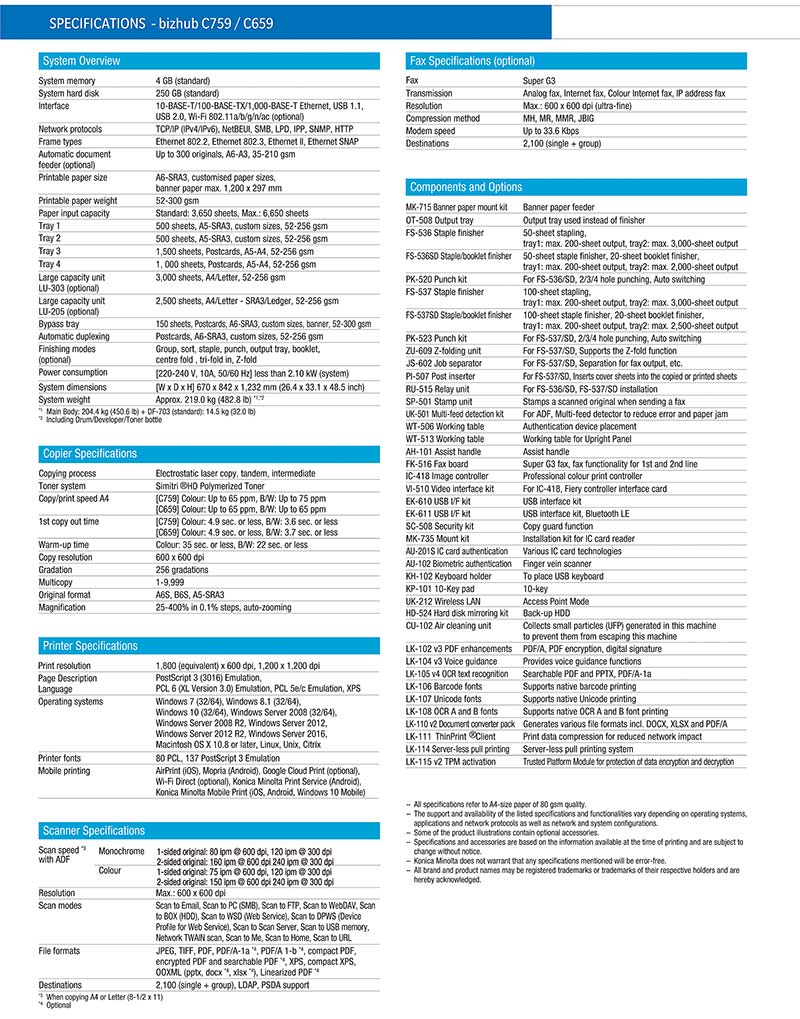

bizhub C759/ C659
by | posted in: Office Color, Office Printing | 0

Specification



bizhub C759/ C659System Overview



System memory   4 GB (standard)
System hard disk   250 GB (standard)
Interface   10-BASE-T/100-BASE-TX/1,000-BASE-T Ethernet, USB 1.1, USB 2.0, Wi-Fi 802.11a/b/g/n/ac (optional)
Network protocols   TCP/IP (IPv4/IPv6), SMB, LPD, IPP, SNMP, HTTP
Frame types   Ethernet 802.2, Ethernet 802.3, Ethernet II, Ethernet SNAP
Automatic document feeder (optional)   Up to 300 originals, A6-A3, 35-210 gsm
 Printable paper size   A6-SRA3, customised paper sizes, banner paper max. 1,200 × 297 mm
 Printable paper weight   52-300 gsm
Paper input capacity   Standard: 3,650 sheets, Max.: 6,650 sheets
 Tray 1   500 sheets, A5-SRA3, custom sizes, 52-256 gsm
 Tray 2   500 sheets, A5-SRA3, custom sizes, 52-256 gsm
 Tray 3   1,500 sheets, Postcards, A5-A4, 52-256 gsm
 Tray 4   1,000 sheets, Postcards, A5-A4, 52-256 gsm
 Large capacity unit LU-303 (optional)   3,000 sheets, A4/Letter, 52-256 gsm
 Large capacity uniT LU-205 (optional)   2,500 sheets, A4/Letter – SRA3/Ledger, 52-256 gsm
 Bypass tray   150 sheets, Postcards, A6-SRA3, custom sizes, banner, 52-300 gsm
Automatic duplexing   Postcards, A6-SRA3, custom sizes, 52-256 gsm
Finishing modes (optional)   Group, sort, staple, punch, output tray, booklet, centre fold , tri-fold in, Z-fold
 Power consumption   [220-240 V, 50/60 Hz] less than 2.10 kW (system)
 System dimensions   [W × D × H] 670 × 842 × 1,232 mm (26.4 × 33.1 × 48.5 inch)
 System weight   Approx. 219.0 kg (482.8 lb) *1,*2
*1
Main Body: 204.4 kg (450.6 lb) + DF-703 (standard): 14.5 kg (32.0 lb).
*2
Including Drum/Developer/Toner bottle

Copier Specifications



Copying process   Electrostatic laser copy, tandem, intermediate
Toner system   Simitri® HD Polymerized Toner
Copy/print speed A4 [C759] Colour: Up to 65 ppm, B/W: Up to 75 ppm
[C659] Colour: Up to 65 ppm, B/W: Up to 65 ppm
1st copy out time [C759] Colour: 4.9 sec. or less, B/W: 3.6 sec. or less
[C659] Colour: 4.9 sec. or less, B/W: 3.7 sec. or less
Warm-up time   Colour: 35 sec. or less, B/W: 22 sec. or less
 Copy resolution   600 × 600 dpi
 Gradation   256 gradations
 Multicopy   1-9,999
Original format   A6S, B6S, A5-SRA3
 Magnification   25-400% in 0.1% steps, auto-zooming

Printer Specifications

Print resolution  1,800 (equivalent) × 600 dpi, 1,200 × 1,200 dpi
Page Description Language PostScript 3 (3016) Emulation,
PCL 6 (XL Version 3.0) Emulation, PCL 5e/c Emulation, XPS
Operating systems Windows 7 (32/64), Windows 8.1 (32/64),
Windows 10 (32/64), Windows Server 2008 (32/64),
Windows Server 2008 R2, Windows Server 2012,
Windows Server 2012 R2, Windows Server 2016,
Macintosh OS X 10.8 or later, Linux, Unix, Citrix
 Printer fonts 80 PCL, 137 PostScript 3 Emulation
Mobile printing AirPrint (iOS), Mopria (Android), Google Cloud Print (optional),
Wi-Fi Direct (optional), Konica Minolta Print Service (Android),
Konica Minolta Mobile Print (iOS, Android, Windows 10 Mobile)

Scanner Spesification



Scan speed*3 with DF-703 Monochrome 1-sided original: 80 ipm @600 dpi, 120 ipm @300 dpi
2-sided original: 160 ipm @600 dpi, 240 ipm @300 dpi
Colour 1-sided original: 75 ipm 600 dpi, 120 ipm  @300 dpi
2-sided original: 150 ipm @600 dpi, 240 ipm @300 dpi
Resolution Max.: 600 × 600 dpi
Scan modes Scan to Email, Scan to PC (SMB), Scan to FTP, Scan to WebDAV, Scan to BOX (HDD), Scan to WSD (Web Service), Scan to DPWS (Device Profile for Web Service), Scan to Scan Server, Scan to USB memory, Network TWAIN scan, Scan to Me, Scan to Home, Scan to URL
File formats JPEG, TIFF, PDF, PDF/A-1a *4, PDF/A 1-b *4, compact PDF, encrypted PDF and searchable PDF *4, XPS, compact XPS, OOXML (pptx, docx *4, xlsx *4), Linearized PDF *4
Destination 2,100 (single+ group ), LDPA, PSDA support
*3
When copying A4 or Letter (8-1/2 x 11)
*4
Optional

Fax Spesification



Fax    Super G3
Transmission    Analog fax, Internet fax, Colour Internet fax, IP address fax
Resolution    Max.: 600 × 600 dpi (ultra-fine)
Compression method    MH, MR, MMR, JBIG
Modem speed    Up to 33.6 Kbps
Destinations    2,100 (single + group)

bizhub C458/C558/C658
by | posted in: Office Color, Office Printing, Products | 0

Specification

bizhub C658 General Specifications

Type Desktop Full Colour Printer / Copier / Scanner
Colour Support Full colour
Copy Resolution Scan Main: 600 dpi × Sub: 600 dpi
Print 1,800 dpi (equivalent) × 600 dpi
Gradation 256
Memory Capacity (Std./Max.) 4 GB
HDD 250 GB
Original Type Sheets, Books, Objects
Max. Original Size A3 (11″ × 17″)
Output Size Main unit: SRA3*1, A3 wide (311.1 × 457.2 mm, 304.8 × 457.2 mm), A3 to A5 Mutliple bypass tray: SRA3, A3 wide (304.8 × 457.2 mm), A3 to A5, B6*2, A6*2, Foolscap*3 (8-1/2″ × 13-1/2″, 200 × 330 mm, 8-1/8″ × 13-1/4″, 8-1/2″ × 13″, 8-1/4″ × 13″, 8″ × 13″), 8K, 16K, Banner paper (210 × 457.3 to 297 × 1,200 mm)*4
Image Loss Max. 4.2mm or less for top edge (5 mm for thin paper),
Max. 3.0mm or less for bottom edge,
Max. 3.0mm or less for right/left edges
*A loss of 4.2 mm each during printing.
Warm-Up Time*5 (23°C, std. voltage)
* The time required to start printing when both the main power and sub-power switches are turned from OFF to ON.		 Colour/B&W: 35/22 sec. or less
* The time required to star t printing when the main power switch is ON and the sub-power switch is turned from OFF to ON. Colour/B&W: 35/22 sec. or less
First Copy Out Time*6 Colour: 4.0 sec. or less
B&W: 3.0 sec. or less
Copy Speed (A4) Colour/B&W: 65 ppm
Copy Magnification Fixed Same Magnification 1: 1±0.5% or less
Scaling Up 1: 1.154/1.224/1.414/2.000
Scaling Down 1: 0.866/0.816/0.707/0.500
Preset 3 types
Zoom 25 to 400% (in 0.1% increments)
Lengthwise Crosswise Individual Settings 25 to 400% (in 0.1% increments)
Paper Capacity
(80 g/m2)		 Tray 1 500 sheets (up to A3)
Tray 2 500 sheets (up to SRA3)
Multiple Bypass Tray 150 sheets (up to SRA3)
Max. Paper Capacity (80 g/m2)*7 6,650 sheets
Paper Weight Tray 1 / 2 52 to 256 g/m2
Multiple Bypass Tray 60 to 300 g/m2
Multiple Copy 1 to 9,999 sheets
Auto Duplex Paper Size Width: 100 to 320 mm, Length: 148 to 457.2 mm
Paper Weight 52 to 256 g/m2
Power Requirements AC220 to 240 V 9 A (50 to 60 Hz)
Max. Power Consumption 2.1 kW or less
Dimensions [W] × [D] × [H] 615 × 693 × 961 mm (24-1/4″ × 27-1/4″ × 37-3/4″ )
Weight Approx. 110 kg (242-1/2 lb)
Space Requirements [W] × [D]*8 937 × 1,267 mm (37″ × 50″)
*1
SRA3 paper can be used in Tray2.
*2
Short edge feed
*3
Set by Customer engineer
*4
Printing on banner paper can only be performed from a a PC.
*5
May vary depending on the operating environment and usage.
*6
A4 long edge feed full size/using the first tray/scanning from the original glass surface.
*7
With options installed.
*8
Without options, with paper trays pulled out, and multiple bypass tray, auxiliary tray and ADF opened.
bizhub C558 General Specifications

Type Desktop Full Colour Printer / Copier / Scanner
Colour Support Full colour
Copy Resolution Scan Main: 600 dpi × Sub: 600 dpi
Print 1,800 dpi (equivalent) × 600 dpi
Gradation 256
Memory Capacity (Std./Max.) 4 GB
HDD 250 GB
Original Type Sheets, Books, Objects
Max. Original Size A3 (11″ × 17″)
Output Size Main unit: SRA3*1, A3 wide (311.1 × 457.2 mm, 304.8 × 457.2 mm), A3 to A5 Mutliple bypass tray: SRA3, A3 wide (304.8 × 457.2 mm), A3 to A5, B6*2, A6*2, Foolscap*3 (8-1/2″ × 13-1/2″, 200 × 330 mm, 8-1/8″ × 13-1/4″, 8-1/2″ × 13″, 8-1/4″ × 13″, 8″ × 13″), 8K, 16K, Banner paper (210 × 457.3 to 297 × 1,200 mm)*4
Image Loss Max. 4.2mm or less for top edge (5 mm for thin paper),
Max. 3.0mm or less for bottom edge,
Max. 3.0mm or less for right/left edges
*A loss of 4.2 mm each during printing.
Warm-Up Time*5 (23°C, std. voltage)
* The time required to start printing when both the main power and sub-power switches are turned from OFF to ON.		 Colour/B&W: 28/28 sec. or less
* The time required to star t printing when the main power switch is ON and the sub-power switch is turned from OFF to ON. Colour/B&W: 28/28 sec. or less
First Copy Out Time*6 Colour: 4.4 sec. or less
B&W: 3.5 sec. or less
Copy Speed (A4) Colour/B&W: 55 ppm
Copy Magnification Fixed Same Magnification 1: 1±0.5% or less
Scaling Up 1: 1.154/1.224/1.414/2.000
Scaling Down 1: 0.866/0.816/0.707/0.500
Preset 3 types
Zoom 25 to 400% (in 0.1% increments)
Lengthwise Crosswise Individual Settings 25 to 400% (in 0.1% increments)
Paper Capacity
(80 g/m2)		 Tray 1 500 sheets (up to A3)
Tray 2 500 sheets (up to SRA3)
Multiple Bypass Tray 150 sheets (up to SRA3)
Max. Paper Capacity (80 g/m2)*7 6,650 sheets
Paper Weight Tray 1 / 2 52 to 256 g/m2
Multiple Bypass Tray 60 to 300 g/m2
Multiple Copy 1 to 9,999 sheets
Auto Duplex Paper Size Width: 100 to 320 mm, Length: 148 to 457.2 mm
Paper Weight 52 to 256 g/m2
Power Requirements AC220 to 240 V 9 A (50 to 60 Hz)
Max. Power Consumption 2.1 kW or less
Dimensions [W] × [D] × [H] 615 × 693 × 961 mm (24-1/4″ × 27-1/4″ × 37-3/4″ )
Weight Approx. 110 kg (242-1/2 lb)
Space Requirements [W] × [D]*8 937 × 1,267 mm (37″ × 50″)
*1
SRA3 paper can be used in Tray2.
*2
Short edge feed
*3
Set by Customer engineer
*4
Printing on banner paper can only be performed from a a PC.
*5
May vary depending on the operating environment and usage.
*6
A4 long edge feed full size/using the first tray/scanning from the original glass surface.
*7
With options installed.
*8
Without options, with paper trays pulled out, and multiple bypass tray, auxiliary tray and ADF opened.
bizhub C458 General Specifications

Type Desktop Full Colour Printer / Copier / Scanner
Colour Support Full colour
Copy Resolution Scan Main: 600 dpi × Sub: 600 dpi
Print 1,800 dpi (equivalent) × 600 dpi
Gradation 256
Memory Capacity (Std./Max.) 4 GB
HDD 250 GB
Original Type Sheets, Books, Objects
Max. Original Size A3 (11″ × 17″)
Output Size Main unit: SRA3*1, A3 wide (311.1 × 457.2 mm, 304.8 × 457.2 mm), A3 to A5 Mutliple bypass tray: SRA3, A3 wide (304.8 × 457.2 mm), A3 to A5, B6*2, A6*2, Foolscap*3 (8-1/2″ × 13-1/2″, 200 × 330 mm, 8-1/8″ × 13-1/4″, 8-1/2″ × 13″, 8-1/4″ × 13″, 8″ × 13″), 8K, 16K, Banner paper (210 × 457.3 to 297 × 1,200 mm)*4
Image Loss Max. 4.2mm or less for top edge (5 mm for thin paper),
Max. 3.0mm or less for bottom edge,
Max. 3.0mm or less for right/left edges
*A loss of 4.2 mm each during printing.
Warm-Up Time*5 (23°C, std. voltage)
* The time required to start printing when both the main power and sub-power switches are turned from OFF to ON.		 Colour/B&W: 25/25 sec. or less
* The time required to star t printing when the main power switch is ON and the sub-power switch is turned from OFF to ON. Colour/B&W: 25/25 sec. or less
First Copy Out Time*6 Colour: 5.1 sec. or less
B&W: 4.0 sec. or less
Copy Speed (A4) Colour/B&W: 45 ppm
Copy Magnification Fixed Same Magnification 1: 1±0.5% or less
Scaling Up 1: 1.154/1.224/1.414/2.000
Scaling Down 1: 0.866/0.816/0.707/0.500
Preset 3 types
Zoom 25 to 400% (in 0.1% increments)
Lengthwise Crosswise Individual Settings 25 to 400% (in 0.1% increments)
Paper Capacity
(80 g/m2)		 Tray 1 500 sheets (up to A3)
Tray 2 500 sheets (up to SRA3)
Multiple Bypass Tray 150 sheets (up to SRA3)
Max. Paper Capacity (80 g/m2)*7 6,650 sheets
Paper Weight Tray 1 / 2 52 to 256 g/m2
Multiple Bypass Tray 60 to 300 g/m2
Multiple Copy 1 to 9,999 sheets
Auto Duplex Paper Size Width: 100 to 320 mm, Length: 148 to 457.2 mm
Paper Weight 52 to 256 g/m2
Power Requirements AC220 to 240 V 9 A (50 to 60 Hz)
Max. Power Consumption 2.1 kW or less
Dimensions [W] × [D] × [H] 615 × 693 × 961 mm (24-1/4″ × 27-1/4″ × 37-3/4″ )
Weight Approx. 110 kg (242-1/2 lb)
Space Requirements [W] × [D]*8 937 × 1,267 mm (37″ × 50″)
*1
SRA3 paper can be used in Tray2.
*2
Short edge feed
*3
Set by Customer engineer
*4
Printing on banner paper can only be performed from a a PC.
*5
May vary depending on the operating environment and usage.
*6
A4 long edge feed full size/using the first tray/scanning from the original glass surface.
*7
With options installed.
*8
Without options, with paper trays pulled out, and multiple bypass tray, auxiliary tray and ADF opened.

Print Specifications

Type Embedded
CPU SOC (1,600 MHz) (DualCore)
Memory Shared with the copier
Print Speed Same as Copy Speed (when using the same original)
HDD 250 GB (Shared with the copier)
Print Resolution 1,800 dpi (equivalent) × 600 dpi (at smoothing) or
1,200 dpi × 1,200 dpi (in 1,200 dpi mode)*1
PDL PCL 5e/c Emulation, PCL 6 Emulation,
PostScript 3 (3016) Emulation, XPS (Ver.1.0)
Protocol TCP/IP (LPD, Raw, SMB, IPP)
Support OS Windows Vista*2 / 7*2 / 8.1*2 / 10*2
Windows Server 2008*2 / 2008 R2 / 2012 / 2012 R2
Mac OS X (10.7 / 10.8 / 10.9 / 10.10 / 10.11)
Linux
Fonts PCL 80 Roman fonts
PS 137 Roman Type1 fonts
Interface Ethernet (10BASE-T/100BASE-TX/1000BASE-T),
USB 1.1, USB 2.0, USB Host
*1
Output speed will be reduced.
*2
Supports the 32-bit (x86) or 64-bit (x64) environment.

Scanning Specifications

Type Full-Colour Scanner
Interface Ethernet (10BASE-T/100BASE-TX/1000BASE-T)
Driver TWAIN Driver, HDD TWAIN Driver
Protocol TCP/IP (FTP, SMB, SMTP, WebDAV) (IPv4/IPv6)
Scanning Speed (Colour/B&W)
(300 dpi, A4)		 Simplex 120 opm
Duplex 240 opm
Scanning Size Max. A3 (11″ × 17″)
Output Format TIFF, JPEG, PDF, Compact PDF, XPS, Compact XPS, OOXML (pptx, xlsx*1, docx*1), Searchable PDF*, PDF/A*1, Linearised PDF*1
Scanning Resolution Push 200 dpi / 300 dpi / 400 dpi / 600 dpi
Pull 100 dpi / 200 dpi / 300 dpi / 400 dpi / 600 dpi
Main Functions Scan to E-Mail, Scan to FTP, Scan to BOX (HDD), Scan to PC (SMB),
Network TWAIN, Scan to WebDAV, Scan to Me, Scan to Home,
Scan to USB, Scan to Scan Server, Scan to Web Service (WSD-Scan),
Device Profile for Web Services (DPWS)
Other Functions Multi-Method Send, Authentication at the time of E-Mail send
(SMTP authentication, POP before SMTP), S/MIME, Annotation
*1
Optional

Internet Fax

Protocol SMTP, POP
Connection Mode Full-Mode
Sending Paper Size A3, B4, A4
Recording Paper Size Max. A3
Resolution 200 × 100 dpi, 200 × 200 dpi, 400 × 400 dpi, 600 × 600 dpi
Interface Ethernet (10BASE-T/100BASE-TX/1000BASE-T)
Colour Support Colour Internet Fax
Format Send: TIFF-F, Receive: TIFF-F ,Colour/Grey Scale: TIFF (RFC3949 Profile-C)

Dual Scan Document Feeder

Type Single pass simultaneous duplex system
Support Paper Size A3 to A6*1, 11″ × 17″ to 5-1/2″ × 8-1/2″, Foolscap*2 (8-1/2″ × 13-1/2″, 200 × 330 mm, 8-1/8″ × 13-1/4″, 8-1/2″ × 13″, 8-1/4″ × 13″, or 8″ × 13″), 8K, 16K
Mixed Size Support
Original Set Centre guide
Support Paper Weight Simplex: 35 to 210 g/m2, Duplex: 50 to 210 g/m2,
Mixed Original: 50 to 128 g/m2
FAX Mode: 35 to 210 g/m2 (Simplex), 50 to 210 g/m2 (Duplex)
Paper Capacity Max. 300 sheets (80 g/m2)
Productivity
A4, 600 dpi, copy mode)		 Simplex Colour/B&W: 80 opm
Duplex Colour/B&W: 160 opm
Power Requirements Supplied from the MFP main body
Max. Power Consumption 104.5 W or less
Dimensions [W] × [D] × [H] 618 × 575 × 180 mm (24-1/4″ × 22-3/4″ × 7″)
Weight Approx. 15.1 kg (33-1/4 lb)
*1
Short edge feed
*2
Set by Customer engineer

Fax Kit FK-514 (Optional)

Communication Super G3
Compatible Lines Public Switch Telephone Network, Private Branch Exchange,
Fax Communication Line
Line Density G3 (8 dot/mm × 3.85 line/mm, 600 × 600 dpi)
Modem Speed 2.4 to 33.6 kbps
Compression MH/MR/MMR/JBIG
Sending Paper Size Max. A3 (Long Length Support: Max.1,000 mm)
Recording Paper Size Max. A3 (Long Length Max. 1,000 mm — following the page division —)
Transmission Speed Less than 3 sec. (A4, V.34, 33.6 kbps, JBIG)
Memory Shared with the copier
Number of Abbr. Dials 2,000
Number of Program Dials 400
Number of Group Dials 100
Sequential Multiple Station Transmission Max. 600

IP Address Fax (Optional) * Optional Fax Kit FK-514 is required.

Protocol Transmission SMTP
Sending Paper Size A3, B4, A4
Resolution 200 × 200 dpi, 400 × 400 dpi, 600 × 600 dpi
Format Send: TIFF-F, Receive: TIFF-F
Colour/Grey Scale: TIFF (RFC3949 Profile-C)

Fiery Image Controller IC-416 (Optional)
* Optional Video Interface Kit VI-510 is required.

Type Embedded
CPU Intel Pentium G850 2.9GHz
Memory 2 GB
HDD 500 GB
Print Speed Same as Copy Speed (when using the same original)
Print Resolution 1,800 dpi (equivalent) × 600 dpi (at smoothing) or
1,200 dpi × 1,200 dpi (in 1,200 dpi mode)
PDL PCL 6, Adobe PostScript 3 (3020)
Protocol Ethernet (Apple Talk, TCP/IP), HTTP/HTTPS, SSL/TLS for HTTPS, SMB,
Port9100 (Bi-Directional), IPP, LDAP, IPV6, SNMP v3
Support OS Windows Vista*1 / 7*1 / 8.1*1 / 10*1
Windows Server 2008*1 / 2008 R2 / 2012 / 2012 R2
Mac OS X (10.7 / 10.8 / 10.9 / 10.10 / 10.11)
Fonts Adobe PS 138 Roman fonts, Agfa PCL 80 Roman fonts and 1 bitmap font,
Additional PCL 35 fonts, Euro Currency Resident Font
Interface Ethernet (10BASE-T/100BASE-TX/1000BASE-T)
*1
Supports the 32-bit (x86) or 64-bit (x64) environment.

bizhub C227/C287
by | posted in: Office Color, Office Printing, Products | 0

Specifications



General Specifications
bizhub C287 bizhub C227
Type Desktop Full Colour Printer / Copier / Scanner
Copy Resolution Scan Main: 600 dpi × Sub: 600 dpi
Print 1,800 dpi (equivalent) × 600 dpi
Gradation 256
Memory Capacity (Std./Max.) 2 GB
HDD 250 GB (optional)
Original Type Sheets, Books, Objects
Max. Original Size A3
Output Size Main unit A3 to A5
Bypass Tray A3 to A5, B6*1, A6*1, Postcard, Envelope*2, Tab paper,Banner paper
(Width: 210 mm to 297 mm, Length: 432 mm to 1,200 mm)*3
Image Loss Max. 4.2mm or less for top edge (5 mm for thin paper),
Max. 3.0mm or less for bottom edge,
Max. 3.0mm or less for right/left edges
*A loss of 4.2 mm each during printing.
Warm-Up Time*4
(23°C, std. voltage)
* The time required to start printing when both the main power and sub-power switches are turned from OFF to ON.		 20 sec. or less
* The time required to star t printing when the main power switch is ON and the sub-power switch is turned from OFF to ON. 20 sec. or less
First Copy Out Time**5 Colour 8.4 sec. or less
B/W 6.8 sec. or less
Copy Speed (Colour/B&W, A4) 28 ppm 22 ppm
Copy Magnification Fixed Same Magnification 1: 1±0.5% or less
Scaling Up 1: 1.154/1.224/1.414/2.000
Scaling Down 1: 0.866/0.816/0.707/0.500
Preset 3 types
Zoom 25 to 400% (in 0.1% increments)
Lengthwise Crosswise Individual Settings 25 to 400% (in 0.1% increments)
Paper Capacity(80 g/m2) Tray 1 500 sheets
Tray 2 500 sheets
Multiple Bypass Tray 100 sheets
Max. Paper Capacity (80 g/m2)*6 3,600 sheets
Paper Weight Tray 1 / 2 60 to 256 g/m2
Multiple Bypass Tray 60 to 256 g/m2
Multiple Copy 1 to 9,999 sheets
Auto Duplex Paper Size A3 to A5, B6*1, A6*1, Postcard
Paper Weight 60 to 209 g/m2
Power Requirements AC220 to 240 V 8 A (50 to 60 Hz)
Max. Power Consumption 1.58 kW or less
Dimensions [W] × [D] × [H] 585 × 660 × 787 mm (23-1/16″ × 26″ × 31″)
Weight Approx. 72 kg (158-3/4 lb)
Space Requirements [W] × [D]*8 899 × 1,090 mm (35-1/2″ × 45-15/16″)
*1 Short edge feed
*2 Wrinkles or printing errors may occur due to the type, storage or environment that exists when envelope printing is carried out.
*3 Printing on banner paper can only be performed from a PC.
*4 May vary depending on the operating environment and usage.
*5 A4 long edge feed full size/using the first tray/scanning from the original glass surface.
*6 With options installed.
*7 Without options, with paper trays pulled out, and multiple bypass tray, auxiliary tray and ADF opened.
Print Specifications
Type Embedded
CPU ARM Cortex-A7 Dual-core 1.2GHz
Memory 2 GB (2,048 MB)
Print Speed Same as Copy Speed (when using the same original)
HDD 250 GB (Shared with the copier)
Print Resolution 1,800 dpi (equivalent) × 600 dpi
PDL PCL5e/c, PCL 6, PostScript 3 Emulation, XPS, BMLinkS
Protocol TCP/IP (LPD, Raw, SMB, IPP), IPX/SPX (NDS support), AppleTalk
Support OS Windows Vista*1 / 7*1 / 8*1 / 8.1*1 / 10*1
Windows Server 2008*1 / 2008 R2 / 2012 / 2012 R2
Mac OS X (10.6 / 10.7 / 10.8 / 10.9 / 10.10 / 10.11)
Linux
Fonts PCL 80 Roman fonts
PS 137 Roman Type1 fonts
Interface Ethernet (10BASE-T/100BASE-TX/1000BASE-T),
USB 1.1, USB 2.0, IEEE 802.11 b/g/n*2
*1 Supports the 32-bit (x86) or 64-bit (x64) environment.
*2 Optional
Scanning Specifications
Type Full-Colour Scanner
Interface Ethernet (10BASE-T/100BASE-TX/1000BASE-T),
USB 1.1, USB 2.0, IEEE 802.11 b/g/n*1
Driver TWAIN Driver, HDD TWAIN Driver
Protocol TCP/IP (FTP, SMB, SMTP, WebDAV) (IPv4/IPv6)
Scanning Speed (Colour/B&W)
(300 dpi, A4, Simplex)		 45 opm*2
Scanning Size Max. A3 (11″ × 17″)
Output Format TIFF, JPEG, PDF, Compact PDF, XPS, Compact XPS, OOXML (pptx, xlsx*1, docx*1), Searchable PDF*1, PDF/A*1, Linearised PDF*1
Scanning Resolution Push 200 dpi / 300 dpi / 400 dpi / 600 dpi
Pull 100 dpi / 200 dpi / 300 dpi / 400 dpi / 600 dpi
Main Functions Scan to E-Mail, Scan to FTP, Scan to BOX (HDD), Scan to PC (SMB),
Network TWAIN, Scan to WebDAV, Scan to USB, Scan to Scan Server,
Scan to Me, Scan to Home, Scan to Web Service (WSD-Scan),
Device Profile for Web Services (DPWS)
Other Functions Multi-Method Send, Authentication at the time of E-Mail send
(SMTP authentication, POP before SMTP), S/MIME, Annotation
Support OS Windows Vista*3 / 7*3 / 8*3 / 8.1*3 / 10*3
*1 Optional
*2 When using the Reverse Automatic Document Feeder DF 628.
*3 Supports the 32-bit (x86) or 64-bit (x64) environment.
Internet Fax
Protocol TX: SMTP, RX: POP3, TCP/IP Simple mode
Connection Mode Full-Mode
Sending Paper Size A3, B4, A4
Recording Paper Size Max. A3
Resolution B/W: 200 × 100 dpi, 200 × 200 dpi, 400 × 400 dpi, 600 × 600 dpi
Colour: 200 × 200 dpi, 400 × 400 dpi, 600 × 600 dpi
Interface Ethernet (10BASE-T/100BASE-TX/1000BASE-T)
Colour Support Colour Internet Fax
Format B/W: TIFF-F
Colour: TIFF (Conforms to RFC3949 Profile-C)
Fax Kit FK-513 (Optional)
Communication Super G3
Compatible Lines Public Switch Telephone Network, Private Branch Exchange,
Fax Communication Line
Line Density Ultra Fine: 600 dpi 600 dpi
Super Fine: 16 dot/mm 15.4 line/mm, 400 dpi 400 dpi
Fine: 8 dot/mm 7.7 line/mm, 200 dpi 200 dpi
Normal: 8 dot/mm 3.85 line/mm
Modem Speed 2.4 to 33.6 kbps
Compression MH/MR/MMR/JBIG
Sending Paper Size Max. A3 (Long Length Support: Max.1,000 mm)
Recording Paper Size Max. A3 (Long Length Max. 1,000 mm — following the page division —)
Transmission Speed Less than 2 sec. (A4, V.34, 33.6 kbps, JBIG)
Memory Shared with the copier
Number of Abbr. Dials 2,000
Number of Program Dials 400
Number of Group Dials 100
Sequential Multiple Station Transmission Max. 600
IP Address Fax (Optional)* Optional Fax Kit FK-514 is required.
Protocol Transmission TCP/IP, SMTP
Sending Paper Size A3, B4, A4
Resolution 200 × 200 dpi, 400 × 400 dpi, 600 × 600 dpi
Format B/W: TIFF-F, TIFF-S
Colour: TIFF, PDF

bizhub C364e
by | posted in: Office Color, Office Printing, Products, Uncategorized | 0

Key Features

  • Speed A4/A3: 36/18 ppm in colour and black & white
  • Paper formats: A6-SRA3, custom formats and banner format up to 1.2 metres length
  • 9 inch colour touch panel with multi-touch support
  • Dual-scan document feeder scans both sides of double-sided originals in one run at a speed of 160 ipm
  • Modular finishing and paper tray options for customised configurations
Related Product :
bizhub C364e  |   bizhub C654e   |   bizhub C454e   |   bizhub C224e   |   bizhub C308   |   bizhub C368

Print from anywhere, anytime…





Making printing infrastructure work efficiently

Konica Minolta’s Optimized Print Services (OPS) combine consulting, hardware, software, implementation and workflow management in order to lower document spend.

Visit the Optimized Print Services Website

Technology Matrix
available
Easily compatible to users and IT environments thanks to Konica Minolta unified print technologyEmperon™ Controller
Pays off to budget and green footprint by high quality and low environmental impactSimitri® HD Toner
Improved user-device interaction and productivity by full MFP panel customisation to your needsIWS Internal Web Service
Enable efficient workflows throughout your MFP fleet by server-based applicationsOpenAPI Technology
Increase the scope of MFP functionality from basic to advanced depending on your needsi-Option Technology
Keep productivity up by online device and consumable monitoring of the Konica Minolta serviceCS Remote Care

Specifications

Operating Systems

Copier Specifications

Copying process Electrostatic laser copy, tandem, indirect
Toner system Simitri HD® polymerised toner
Copy/print speed A4 mono (cpm) 36
Copy/print speed A4 colour (cpm) 36
Copy/print speed A3 mono (cpm) 18
Copy/print speed A3 colour (cpm) 18
Autoduplex speed A4 mono (cpm) 36
Autoduplex speed A4 colour (cpm) 36
1st Copy/print time mono (sec) 5.3
1st Copy/print time colour (sec) 6.9
Warm-up time (sec) Approx. 20 *
* Warm up time may vary depending on the operating environment and usage
Copy resolution (dpi) 600 x 600
Gradations 256 gradations
Multi-copy 1-9,999
Original format A5-A3
Magnification 25-400% in 0.1% steps; auto-zooming
Copy functions Chapter; cover and page insertion; proof copy (print and screen); adjustment test print; digital art functions;
job setting memory; poster mode; image repeat; overlay (optional); stamping; copy protection

Printer Specifications

Print resolution (dpi) 1,800 x 600
1,200 x 1,200
Controller CPU Speed 800 MHz
Page description language PCL6 (XL 3.0)
PCL 5c
PostScript 3 (CPSI 3016)
XPS
Operating systems Windows VISTA (32/64)
Windows 7 (32/64)
Windows 8 (32/64)
Windows 10 (32/64)
Windows Server 2008 (32/64)
Windows Server 2008 R2 (64)
Windows Server 2012 (64)
Windows Server 2012 R2
Macintosh OS X 10.x
Unix, Linux, Citrix
Printer fonts 80 PCL Latin; 137 PostScript 3 Emulation Latin
Print functions Direct print of PCL, PS, TIFF, XPS, PDF, encrypted PDF files
and OOXML (DOCX, XLSX, PPTX); mixmedia and mixplex;
“Easy Set” job programming; overlay; watermark;
copy protection; carbon copy print

Scanner Specifications

Scan speed colour (opm) Up to 160 ipm (with optional DF-701)
Scan Speed mono (opm) Up to 160 ipm (with optional DF-701)
Scan resolution (dpi) Max.: 600 x 600
Scan modes Scan-to-eMail (Scan-to-Me)
Scan-to-SMB (Scan-to-Home)
Scan-to-FTP
Scan-to-Box
Scan-to-USB
Scan-to-WebDAV
Scan-to-DPWS
Network TWAIN scan
File formats JPEG; TIFF; PDF; PDF/A 1a and 1b (optional); compact PDF; encrypted PDF; searchable PDF (optional); XPS; compact XPS; PPTX; searchable PPTX (optional); searchable DOCX/XLSX (optional)
Scan destinations 2,100 (single + group); LDAP support
Scan functions Annotation (text/time/date) for PDF; up to 400 job programs; real-time scan preview

Fax Specifications

Fax standard Super G3 (optional)
Fax transmission Analogue
i-Fax
Colour i-Fax (RFC3949-C)
IP-Fax
Fax resolution (dpi) Max.: 600 x 600 (ultra-fine)
Fax compression MH; MR; MMR; JBIG
Fax modem (Kbps) Up to 33.6 Kbps
Fax destinations 2,100 (single + group)
Fax functions Polling; time shift; PC-Fax; receipt to confidential box;
Receipt to e-mail/FTP/SMB; up to 400 job programs

User box specification

Max. storable documents Up to 3,000 documents or 10,000 pages
Type of user boxes Public
Personal (with password or authentication)
Group (with authentication)
Type of system boxes Secure print
Encrypted PDF print
Fax receipt
Fax polling
User box functionality Reprint; combination
Download
Sending (e-mail/FTP/SMB and Fax)
Copy box to box

System Specifications

System memory standard (MB) 2,048 (standard)
System hard disc standard (GB) 250 (standard)
Interfaces standard Wi-Fi 802.11b/g/n (optional)
Network protocols TCP/IP (IPv4 / IPv6); IPX/SPX; NetBEUI; AppleTalk (EtherTalk); SMB; LPD; IPP; SNMP; HTTP
Frame types Ethernet 802.2; Ethernet 802.3; Ethernet II; Ethernet SNAP
Automatic document feeder Up to 100 originals; A6-A3; 35-163 gsm
RADF or Dualscan ADF available
Paper size A6-SRA3, customised paper sizes;
banner paper max. 1,200 x 297 mm
Printable paper weight (g/m²) 52-300 gsm
Paper input capacity (sheets) Standard: 1,150
Max.: 3,650 sheets
Paper trays standard Tray 1: 500 sheets, A5-A3, 52-256 gsm
Tray 2: 500 sheets, A5-SRA3, 52-256 gsm
Manual Bypass: 150 sheets, A6-SRA3, custom sizes, banner, 60-300 gsm
Paper trays optional Tray 3: 500 sheets, A5-A3, 52-256 gsm
Tray 3 + 4: 2x 500 sheets, A5-A3, 52-256 gsm
Large Capacity Cabinet: 2,500 sheets, A4, 52-256 gsm
Automatic duplexing A5-SRA3; 52-256 gsm
Finishing modes (optional) Offset; group; sort; staple; punch; post insertion; centre-fold; letter fold; booklet
Output capacity (w. finisher) Max.: 3,300 sheets
Output capacity (w/o finisher) Max.: 250 sheets
Stapling 50 sheets or 48 sheets + 2 cover sheets (up to 209 gsm)
Stapling output capacity Max. 1,000 sheets
Letter fold Up to 3 sheets
Letter fold capacity Max.: 30 sheets (tray); unlimited
Booklet Max.: 20 sheets (90gsm) or 19 sheets (90gsm) + 1 cover sheet (up to 209 gsm)
Booklet output capacity Max.: 100 sheets (tray); unlimited
Copy/print volume recommended (monthly) 25,000 pages
Copy/print volume max. (monthly) 125,000 pages
Toner lifetime Black 27,000
Toner lifetime CMY 25,000
Developer lifetime Black 600,000
Developer lifetime CMY 600,000
Drum lifetime Black 120,000
Drum lifetime CMY 90,000
Power consumption 220-240 V / 50/60 Hz
Less than 1.5 kW (system)
System dimensions (WxDxH, mm) 615 x 685 x 779 mm (excl. ADF and lower paper tray unit)
System weight (kg) Approx. 85

System Features

Security ISO 15408 EAL3 (in evaluation); IEEE 2600.1 compliant;
IP filtering and port blocking;
SSL2; SSL3 and TSL1.0 network communication;
IPsec support; IEEE 802.1x support; user authentication;
Authentication log; secure print;
Hard disc overwrite (8 standard types);
Hard disc data encryption (AES 128);
Memory data auto deletion; Confidential fax receipt;
Print user data encryption; copy protection (Copy Guard,
Password Copy) optional
Accounting Up to 1,000 user accounts; Active Directory support (user name + password + e-mail + smb folder)
User function access definition
Biometric authentication (finger vein scanner) optional
ID card authentication (ID card reader) optional
Software PageScope Net Care Device Manager
PageScope Data Administrator
PageScope Box Operator
PageScope Direct Print
Print Status Notifier
Driver Packaging Utility
Log Management Utility



  • All specifications refer to A4-size paper of 80 gsm quality.
  • The support and availability of the listed specifications and functionalities varies depending on operating systems, applications and network protocols as well as network and system configurations.
  • The stated life expectancy of each consumable is based on specific operating conditions such as page coverage for a particular page size (5% coverage of A4). The actual life of each consumable will vary depending on use and other printing variables including page coverage, page size, media type, continuous or intermittent printing, ambient temperature and humidity.
  • Some of the product illustrations contain optional accessories.
  • Specifications and accessories are based on the information available at the time of printing and are subject to change without notice.
  • Konica Minolta does not warrant that any specifications mentioned will be error-free.
  • All brand and product names may be registered trademarks or trademarks of their respective holders and are hereby acknowledged.

bizhub C554e
by | posted in: Office Color, Office Printing, Products | 0

Take control of your document needs with first class usability.

Others in this series

bizhub C754e   |   bizhub C654e   |   bizhub C454e   |   bizhub C224e   |   bizhub C308   |   bizhub C368

Key Features

Specifications

Product Category Office
Mono Output Speed (A4 pages per min) 55
Colour Output Speed (A4 pages per min) 55
Print Resolution (dpi) 1200 x 1200
Copy Resolution (dpi) 600 x 600
First Time To Print Mono (secs) 4.1
First Time To Print Colour (secs) 4.6
Warm Up Time (secs) 22
Output Size Max SRA3
Average Monthly Volume (A4 pages per mth) 33333
Standard Paper Input Tray 1 (sheets) 500 (up to A3)
Standard Paper Input Tray 2 (sheets) 500 (up to SRA3)
Standard Paper Input Multiple Bypass (sheets) 150 (up to SRA3)
Maximum Paper Input (sheets) 6650
Paper Weight Trays (gsm) (Tray 1/2) 52 – 256
Paper Weight Multiple Bypass (gsm) 52 – 300
Standard Memory (GB) 2 (Max 4)
Hard Drive Standard 250
Document Feeder (sheets) 100
Weight (kg) (Approx) 101
Dimension W x D x H (mm) 615 × 685 × 921
Dimension Inclusions Dimensions include Automatic Document Feeder (ADF)
Power Requirements (V / Amp / Hz) 220-240V / 9A / 50-60Hz
Max Power Consumption (kW) 2
Energy Star Typical Energy Consumption (kWh/week) 3.52
Automatic Duplex Unit Paper Weight (gsm) 52 to 256 gsm
Automatic Duplex Unit Max Sheet Size SRA3
Scan Type Full colour scanner
Scanning Speed Simplex Max 80
Scanning Speed Duplex Max 160
Interface Ethernet (10BASE-T / 100BASE-TX / 1000BASE-T)
Protocol TCP/IP (FTP, SMB, SMTP)
Dual Scan True
Scanning Size Max A3
Scan Resolution Push: 200 dpi / 300 dpi / 400 dpi / 600 dpiPull: 100 dpi / 200 dpi / 300 dpi / 400 dpi / 600 dpi
Output Format TIFF, JPEG, PDF, Compact PDF, XPS, Compact XPS, PPTx, DOCx*, XLSx*, Searchable PDF*, PDF / A*, Linearised PDF *optional
Main Functions Scan to E-Mail, Scan to FTP, Scan to BOX (HDD), Scan to PC (SMB), Network TWAIN, Scan to WebDAV, Scan to Me, Scan to Home, Scan to USB, Scan to Scan Server, Scan to Web Service (WSD-Scan), Device Profile for Web Services (DPWS)
Modem Type Super G3
Modem Speed (min to max kbps) 2.4 to 33.6
Transmission Speed (secs) 3
Scanning Speed (A4 originals per min) 55
Numberof Stored Destinations 2000
Numberof One Touch Destinations 400
Numberof Group Destinations 100
Internet Fax Protocol SMTP, POP
Internet Fax Resolution (dpi) 200 x 100, 200 x 200, 400 x 400, 600 x 600
Internet Fax Interface Ethernet (10BASE-T / 100BASE-TX / 1000BASE-T)
Internet Fax Colour True
Sendand Receive File Format Send: TIFF-F, Receive: TIFF-F Colour / Grey Scale:TIFF (RFC3949 Profile-C)
Operating System Support Windows 2000 / XP / XP 64bit / Vista / Vista 64bit / 7 / 7 64bit / 8 / 8 64bit / Server 2003 / Server 2003 64bit / Server 2003 R2 / Server 2003 R2 64bit /Server 2008 / Server 2008 64bit / Server 2012 / Mac OS 9.2 / Mac OS X 10.2 / 10.3/10.4 (Power PC) / Mac OS X 10.5 Power PC/Intel / Mac OS X 10.6 /10.7 / 10.8 Intel Linux
Processor (MHz) SOC 800 MHz (DualCore)
Supported Protocols TCP / IP, IPX/SPX (NDS support), SMB (NetBEUI), LPD, IPP1.1, SNMP, HTTP
Memory (Shared with copier)
Printer Language PostScript 3 Emulation (3016), PCL5e/c, PCL6 (Ver. 3.0), XPS Ver. 1.0
Printer Interface Ethernet (10BASE-T / 100BASE-TX / 1000BASE-T), USB 1.1, USB 2.0, USB Host





To contact us regarding your sales enquiry, call us on:

+6221 424 8809

bizhub C454e
by | posted in: Office Color, Office Printing, Products | 0

Improve productivity with high-speed output and powerful modular options for scalability.

Others in this series

bizhub C754e   |   bizhub C654e   |   bizhub C554e   |   bizhub C224e   |   bizhub C308   |   bizhub C368

Key Features

Specifications

Product Category Office
Mono Output Speed (A4 pages per min) 45
Colour Output Speed (A4 pages per min) 45
Print Resolution (dpi) 1200 x 1200
Copy Resolution (dpi) 600 x 600
First Time To Print Mono (secs) 4.6
First Time To Print Colour (secs) 5.5
Warm Up Time (secs) 25
Output Size Max SRA3
Average Monthly Volume (A4 pages per mth) 30000
Standard Paper Input Tray 1 (sheets) 500 (up to A3)
Standard Paper Input Tray 2 (sheets) 500 (up to SRA3)
Standard Paper Input Multiple Bypass (sheets) 150 (up to SRA3)
Maximum Paper Input (sheets) 6650
Paper Weight Trays (gsm) (Tray 1/2) 52 – 256
Paper Weight Multiple Bypass (gsm) 52 – 300
Standard Memory (GB) 2 (Max 4)
Hard Drive Standard 250
Document Feeder (sheets) 100
Weight (kg) (Approx) 101
Dimension W x D x H (mm) 615 × 685 × 921
Dimension Inclusions Dimensions include Automatic Document Feeder (ADF)
Power Requirements (V / Amp / Hz) 220-240V / 9A / 50-60Hz
Max Power Consumption (kW) 2
Energy Star Typical Energy Consumption (kWh/week) 2.94
Automatic Duplex Unit Paper Weight (gsm) 52 to 256 gsm
Automatic Duplex Unit Max Sheet Size SRA3
Scan Type Full colour scanner
Scanning Speed Simplex Max 80
Scanning Speed Duplex Max 160
Interface Ethernet (10BASE-T / 100BASE-TX / 1000BASE-T)
Protocol TCP/IP (FTP, SMB, SMTP)
Dual Scan True
Scanning Size Max A3
Scan Resolution Push: 200 dpi / 300 dpi / 400 dpi / 600 dpiPull: 100 dpi / 200 dpi / 300 dpi / 400 dpi / 600 dpi
Output Format TIFF, JPEG, PDF, Compact PDF, XPS, Compact XPS, PPTx, DOCx*, XLSx*, Searchable PDF*, PDF / A*, Linearised PDF *optional
Main Functions Scan to E-Mail, Scan to FTP, Scan to BOX (HDD), Scan to PC (SMB), Network TWAIN, Scan to WebDAV, Scan to Me, Scan to Home, Scan to USB, Scan to Scan Server, Scan to Web Service (WSD-Scan), Device Profile for Web Services (DPWS)
Modem Type Super G3
Modem Speed (min to max kbps) 2.4 to 33.6
Transmission Speed (secs) 3
Scanning Speed (A4 originals per min) 55
Numberof Stored Destinations 2000
Numberof One Touch Destinations 400
Numberof Group Destinations 100
Internet Fax Protocol SMTP, POP
Internet Fax Resolution (dpi) 200 x 100, 200 x 200, 400 x 400, 600 x 600
Internet Fax Interface Ethernet (10BASE-T / 100BASE-TX / 1000BASE-T)
Internet Fax Colour True
Sendand Receive File Format Send: TIFF-F, Receive: TIFF-F Colour / Grey Scale:TIFF (RFC3949 Profile-C)
Operating System Support Windows 2000 / XP / XP 64bit / Vista / Vista 64bit / 7 / 7 64bit / 8 / 8 64bit / Server 2003 / Server 2003 64bit / Server 2003 R2 / Server 2003 R2 64bit /Server 2008 / Server 2008 64bit / Server 2012 / Mac OS 9.2 / Mac OS X 10.2 / 10.3/10.4 (Power PC) / Mac OS X 10.5 Power PC/Intel / Mac OS X 10.6 /10.7 / 10.8 Intel Linux
Processor (MHz) SOC 800 MHz (DualCore)
Supported Protocols TCP / IP, IPX/SPX (NDS support), SMB (NetBEUI), LPD, IPP1.1, SNMP, HTTP
Memory (Shared with copier)
Printer Language PostScript 3 Emulation (3016), PCL5e/c, PCL6 (Ver. 3.0), XPS Ver. 1.0
Printer Interface Ethernet (10BASE-T / 100BASE-TX / 1000BASE-T), USB 1.1, USB 2.0, USB Host





To contact us regarding your sales enquiry, call us on:

+6221 424 8809

bizhub C368
by | posted in: Office Color, Office Printing, Products | 0

High performance technology with seamless mobile connectivity

Others in this series

bizhub C754e   |   bizhub C654e   |   bizhub C554e   |   bizhub C454e   |   bizhub C308   |   bizhub C224e

Key Features

Specifications

Product Category Office
Mono Output Speed (A4 pages per min) 36
Colour Output Speed (A4 pages per min) 36
Print Resolution (dpi) 1200 x 1200 (and 1800 x 600 equivalent enhanced)
Copy Resolution (dpi) 600 x 600
First Time To Print Mono (secs) 5.3
First Time To Print Colour (secs) 6.9
Warm Up Time (secs) 20
Output Size Max SRA3
Average Monthly Volume (A4 pages per mth) 13333
Standard Paper Input Tray 1 (sheets) 500 (up to A3)
Standard Paper Input Tray 2 (sheets) 500 (up to SRA3)
Standard Paper Input Multiple Bypass (sheets) 150 (up to SRA3)
Standard Paper Input High Capacity Feeder (sheets) 3000
Maximum Paper Input (sheets) 6650
Paper Weight Trays (gsm) (Tray 1/2) 52 – 256
Paper Weight Multiple Bypass (gsm) 52 – 300
Standard Memory (GB) 4GB with extra UK-211
Hard Drive Standard 250
Document Feeder (sheets) 100
Weight (kg) (Copier Only) 85
Dimension W x D x H (mm) (Copier Only) 615 x 685 x 779 mm
Dimension Inclusions Dimensions don’t include Automatic Document Feeder (ADF)
Power Requirements (V / Amp / Hz) 220-240V / 9A / 50-60Hz
Max Power Consumption (kW) 1.84
Energy Star Typical Energy Consumption (kWh/week) 1.8
Automatic Duplex Unit Paper Weight (gsm) 52 to 256 gsm
Automatic Duplex Unit Max Sheet Size SRA3
Scan Type Full colour scanner
Scanning Speed Simplex Max 80
Scanning Speed Duplex Max 37 (DF-624), 160 (DF-701)
Interface Ethernet (10BASE-T / 100BASE-TX / 1000BASE-T)
Protocol TCP/IP (FTP, SMB, SMTP)
Dual Scan True
Scanning Size Max A3
Scan Resolution Push: 200 dpi / 300 dpi / 400 dpi / 600 dpiPull: 100 dpi / 200 dpi / 300 dpi / 400 dpi / 600 dpi
Output Format TIFF, JPEG, PDF, Compact PDF, XPS, Compact XPS, PPTx, DOCx*, XLSx*, Searchable PDF*, PDF / A*, Linearised PDF *optional
Main Functions Scan to E-Mail, Scan to FTP, Scan to BOX (HDD), Scan to PC (SMB), Network TWAIN, Scan to WebDAV, Scan to Me, Scan to Home, Scan to USB, Scan to Scan Server, Scan to Web Service (WSD-Scan), Device Profile for Web Services (DPWS)
Modem Type Super G3
Modem Speed (min to max kbps) 2.4 to 33.6
Transmission Speed (secs) 3
Scanning Speed (A4 originals per min) 55
Numberof Stored Destinations 2000
Numberof One Touch Destinations 400
Numberof Group Destinations 100
Internet Fax Protocol SMTP, POP
Internet Fax Resolution (dpi) 200 x 100, 200 x 200, 400 x 400, 600 x 600
Internet Fax Interface Ethernet (10BASE-T / 100BASE-TX / 1000BASE-T)
Internet Fax Colour True
Sendand Receive File Format Send: TIFF-F, Receive: TIFF-F Colour / Grey Scale:TIFF (RFC3949 Profile-C)
Operating System Support Windows 2000 / XP / XP 64bit / Vista / Vista 64bit / 7 / 7 64bit / 8 / 8 64bit / Server 2003 / Server 2003 64bit / Server 2003 R2 / Server 2003 R2 64bit /Server 2008 / Server 2008 64bit / Server 2012 / Mac OS 9.2 / Mac OS X 10.2 / 10.3/10.4 (Power PC) / Mac OS X 10.5 Power PC/Intel / Mac OS X 10.6 /10.7 / 10.8 Intel Linux
Processor (MHz) SOC 800 MHz (DualCore)
Supported Protocols TCP / IP, IPX/SPX (NDS support), SMB (NetBEUI), LPD, IPP1.1, SNMP, HTTP
Memory (Shared with copier)
Printer Language PostScript 3 Emulation (3016), PCL5e/c, PCL6 (Ver. 3.0), XPS Ver. 1.0
Printer Interface Ethernet (10BASE-T / 100BASE-TX / 1000BASE-T), USB 1.1, USB 2.0, USB Host



To contact us regarding your sales enquiry, call us on:

+6221 424 8809

1 2
